HIGH PERFORMACE IN A MOTOR BUILT TO LAST
Electromechanical irreversible gearmotor, suitable for sliding gates up to 1500 Kg.
KALOS XL is an electromechanical irreversible 230Vac / 120Vac gearmotor for sliding gates ups to a weight of 1500Kg (1000Kg for 120Vac). Integrated BIOS1 control unit with radio receiver on-board, slowing downs, safety devices and managing of transmitters through the display.
Backing plate included.
KALOS XL
KALOS XL 24V is an electromechanical irreversible 24Vdc gearmotor for sliding gates up to a weight of 1000Kg. On-board BIOS1 24V control unit with radio receiver, slowing downs and safety device. Available also model FAST 24V for gated up to 600Kg, speed up to 18m/minute
Backing plate included.
KALOS XL INVERTER 230V Δ The premium mechanics of KALOS XL INVERTER and the high performance integrated INVERTER electronics in a motor even more performing and reliable, even in critical conditions. Especially suitable for condominium and industrial use.
Backing plate included.
HIGH PERFORMANCE.

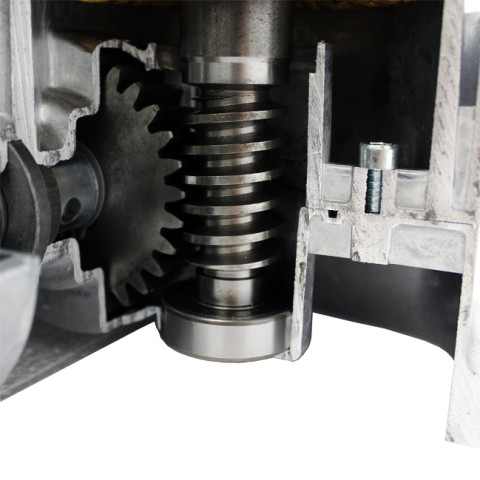

The quality of the materials used and the attention to the structural details give this gearmotor maximum life and reliability across time, always offering outstanding performance.
Solid and refined cutting-edge mechanical technology, combined with integrated BIOS electronics and with an unprecedented number of functionalities.
KALOS XL is the ideal solution for sliding gates up to 1500KG. Available in different versions depending on requirements, also for intensive use. Ideal for residential, condominium and industrial applications.
Available FAST model 24V for gated up to 600Kg, speed up to 18m /min.
| Technical features | KALOS XL 800 |
KALOS XL 1200 |
KALOS XL 1500 | KALOS XL 120V 1000 | KALOS XL 24V 1000 |
KALOS XL 24 FAST 600 | KALOS XL INVERTER Δ 1500 | |
| Power Supply | (V) | 230 Vac 50Hz |
230 Vac 50Hz |
230 Vac 50Hz |
120 Vac 60Hz |
230 Vac 50Hz |
230 Vac 50Hz |
230 Vac 50Hz |
| Motor power supply | (V) | 230 Vac 50Hz |
230 Vac 50Hz |
230 Vac 50Hz |
120 Vac 60Hz |
24Vdc | 24Vdc | three-phase 230V Δ |
| Motor absorption | (A) | 1,3 | 2 | 3 | 3 | 3 | 4,5 | 3 |
| Maximum gate weight | (Kg) | 800 | 1200 | 1500 | 1000 | 1000 | 600 | 1500 |
| Capacitor | (µF) | 10 | 12.5 | 16 | 50 | – | – | – |
| Speed | (m/min) | 10 | 10 | 10 | 11 | 10 | 18 | 10 (50Hz)20 (100Hz) |
| Maximum thrust | (N) | 700 | 800 | 900 | 750 | 750 | 750 | 1500 |
| Service | (%) | 30 | 30 | 30 | 30 | 100 | 80 | 75 |
| Recommended daily revolutions | (n°) | 200 | 200 | 200 | 200 | 400 | 400 | 300 |
| Guaranteed consecutive cycles T=20°C; Stroke: 4,5m |
(n°) | 10 | 10 | 20 | 15 | 50 | 50 | 10 |
| Protection class | (IP) | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Integrated control unit | BIOS1 | BIOS1 | BIOS1 | BIOS1 120 | BIOS1 24 | BIOS1 24 | INVERTER COMPACT |
