BIG
Control and safety in a gearmotor for semi-intensive and industrial gates use.
Electromechanical gearmotor for sliding gates suitable for gates up to 2200 Kg.

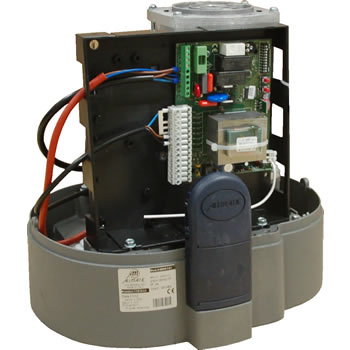

BIG 2.2 is an electromechanical irreversible 230 Vac gearmotor for sliding gates up to a weight of 2200 kg. On-board BIOS1 electronic control unit with radio receiver. Electronic torque adjuster with adjustable slowing-downs both in the opening and closing phase, independent control of opening and closing stroke.
Control unit with the managing of a transmitter through the display.
Backing plate included
BIG 2.2is an electromechanical irreversible 230 Vac gearmotor for sliding gates up to a weight of 2200 kg. On-board CT INVERTER electronic control unit. Electronic torque adjuster with adjustable slowing-downs both in opening and closing phase without power loss, independent control of stroke during opening and closing phases, optical encoder, LCD display for setting.
Backing plate included
Receiver B.RO22W LED 2ch included
BIG electromechanical gearmotor for sliding gates with full metal gears, ensuring optimal performance and reliability.
• BIG Gearmotor, ideal for gates for semi-intensive and industrial use.
Sophisticated pre-wired electronic control unit.
• Advanced: thanks to the independent control of stroke in opening and closing phases.
• Safe: thanks to the photocell test function, verifying the correct photocell operation before any movement.
> Innovative inverter control unit, for collective use and large dimensions passages , equipped with frequency changer up to 100 Hz.
| Technical features | BIG 2.2 | ||
| Power supply | (V) | 230 Vac – 50Hz (120Vac – 60Hz) |
230 Vac – 50Hz (120Vac – 60Hz) |
| Motor power supply | (V) | 230 Vac – 50Hz | 230 Vac – 50Hz |
| Motor absorption | (A) | 3.45 | 3.45 |
| Motor power | (W) | 774 | 774 |
| Maximum gate weight | (Kg) | 2200 | 2200 |
| Capacitor | (µF) | 16 | – |
| Speed | (m/min) | 10 | 10 |
| Maximum thrust | (N) | 1150 | 1150 |
| Service | (%) | 70 | 70 |
| Recommended daily revolutions | (n°) | 800 | 800 |
| Protection degree | (IP) | 44 | 44 |
| Control unit | BIOS1 | CT INVERTER | |
